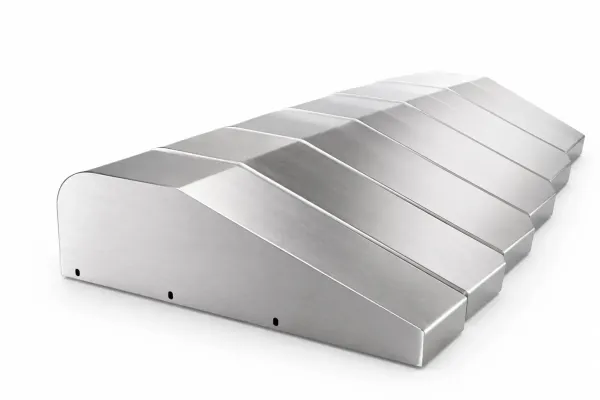

Aluminum Sheet Metal Parts: What Changes When the Drawing Says Aluminum

An aluminum part usually arrives as a steel part with one word changed. The geometry is the same, the hole pattern is the same, the finish note is carried over, and the expectation is a lighter part that behaves like the original. It rarely works that way. Aluminum is not a lighter version of steel; it is a material that asks for a different bend radius, a different weld preparation, a different handling discipline and a different finishing conversation. Most of the problems we are asked to solve on aluminum jobs were created on the drawing, by habits that were perfectly correct for the material before.

Aluminum Punishes Habits Carried Over From Steel

Four properties explain nearly everything that surprises people about aluminum sheet. It is softer, so it marks, dents and scratches in circumstances where steel shrugs. It conducts heat many times faster, which changes both welding and cutting behaviour. It carries an oxide layer on the surface at all times, and that layer has a much higher melting point than the metal underneath it. And it does not show a clear yield behaviour in forming, so the difference between a good bend and a cracked one is narrower than in steel.

None of these make aluminum difficult. They make it specific. A shop that runs it regularly handles all four without comment; a drawing that ignores all four produces parts that are technically to specification and practically unusable. The gap between those two outcomes is almost entirely a specification gap rather than a manufacturing one.

There is also a cost side that confuses buyers. The metal is more expensive per kilogram than carbon steel, and on a like-for-like drawing the quote goes up for reasons that have nothing to do with weight: slower throughput, more handling care, different consumables, and more finishing attention. We would rather say that plainly at quotation than explain it after the first delivery.

Scratches, Film and the Handling Problem

Aluminum sheet is normally supplied with a protective film, and that film is doing real work. It protects the surface through cutting, forming and handling, and it is removed at the end — or earlier, when a process needs it gone. Where jobs go wrong is usually at the seams: the film is left on through a process that traps it, or removed too early and the part is then handled unprotected for several operations.

The reason it matters is that an aluminum surface cannot be rescued the way a steel one can. A scratch on painted steel disappears under the coating. A scratch on bare aluminum is visible, and if the part is going to be anodized it stays visible, because anodizing is a conversion of the surface rather than a covering of it — it faithfully reproduces whatever was already there. Bench surfaces, stacking method, the way parts are moved between operations and the gloves people wear all end up in the finished appearance.

For a visible part, we would rather agree the handling rules before the first piece than argue about the finish afterwards. Tell us which surfaces are cosmetic, whether the film should stay on until delivery, and what a mark on a visible face means for acceptance. Those three lines on an enquiry save more rework than any amount of care that was never specified.

Where Aluminum Cracks and Steel Only Stretches

Bending is where a steel drawing most often fails as an aluminum part. Aluminum needs a larger inside radius than the same thickness of steel, and the radius that a steel version tolerated without comment can produce a cracked outer surface in aluminum — sometimes a fine crack that is invisible until the part is anodized and shows it as a dark line. The temper the sheet is supplied in matters here: material in a harder temper forms less happily than annealed material, and the same geometry can succeed in one and fail in the other.

The second difference is how the failure looks. Steel usually tells you that a bend is too tight by deforming, thinning or tearing slowly enough for someone to notice. Aluminum in a marginal condition can go from fine to cracked with no useful warning, and because the cracks often sit on the outside of the bend they are missed until the part is finished and handled. By then the material, the cutting and several operations have already been paid for.

What we ask for is a radius that is drawn for the material rather than inherited from it, and an indication of which bends will be visible. If a tight radius is genuinely needed for appearance, there are ways to get it, but they involve extra steps and they have to be planned rather than discovered. This is the single change that prevents the largest share of aluminum surprises we see.

Welding Aluminum: Preparation First, Distortion Second

Welding aluminum is mostly a cleaning and a heat problem. The oxide layer has to be dealt with before the arc, because it melts at a far higher temperature than the metal below it and will otherwise sit in the joint as an inclusion. Clean, freshly prepared material and the right filler are not refinements on an aluminum weld — they are the difference between a joint and a decoration.

The heat behaviour then drives everything else. Aluminum conducts heat away from the weld zone quickly, which means more energy has to be put in and the surrounding area heats up more than a steel welder expects. The result is distortion, and on a long panel or a thin section the distortion can be greater than the tolerance the part was drawn to. Fixturing, weld sequence and intermittent welding are the tools used to control it, and all three are easier to plan than to retrofit.

Afterwards there is usually more work than buyers expect. Welds on aluminum are visible in a way that welds on painted steel are not, and if the part is to be anodized the weld will not match the surrounding surface — the filler and the heat-affected zone take the finish differently. We raise this at quotation because it changes what the finished part looks like, and it is much cheaper to agree on the appearance than to discover it at delivery.

Fastening Aluminum to Steel Without Creating a Corrosion Cell

Put aluminum in electrical contact with stainless steel in the presence of water and you have built a small battery, with the aluminum as the sacrificial side. The part does not fail dramatically; it whitens, pits and seizes around the fastener, and by the time it is noticed the joint is often impossible to disassemble. This is the most common long-term failure we see on mixed-material equipment, and it is entirely predictable at the drawing stage.

The countermeasures are ordinary: break the electrical path with a non-conductive washer or sleeve, choose a fastener material that sits closer to aluminum in the galvanic series, coat or isolate the joint, and keep water from sitting in it. Drainage and geometry do as much work as material selection here, because a joint that dries quickly is far more forgiving than one that stays damp.

If the assembly has to mix aluminum and stainless — and it often does, because a stainless frame with aluminum covers is a sensible combination — decide which side is protected. Sacrificial protection can be planned for, by making the cheaper part the one that corrodes and keeping it replaceable. What cannot be planned for is a mixed joint that nobody thought about until it came back.

Anodizing and the Choices It Forces Early

Anodizing is chosen for appearance and for a hard, integral surface, and it has two consequences that need to be decided early. The first is that it shows everything: scratches, handling marks, material variation between sheets, and the heat-affected zone around a weld. If a part is going to be anodized, every step before it has to be performed as though the surface were already the finished product, because in a sense it is.

The second is consistency. Parts from different material lots can anodize to slightly different shades, and a batch that looks uniform in bare metal can look patchy once it has been through the tank. For a product where several panels sit side by side, that means planning the material and the batch together rather than treating each order independently — and it is worth mentioning at enquiry, because it affects how the job is scheduled.

There are practical details too. Threads, grounding points and sealing faces usually have to be masked, and the masking has to be specified; dimensional effects are small but not zero on close-fitting features. None of this is a reason to avoid anodizing. It is a reason to specify it at the beginning rather than add it to a drawing that was developed for paint.

Our See Our Metal Fabrication Solutions page sets out how we handle mixed-material projects, and Read About Our Production Capability covers the equipment we run them on.

Conclusion

Aluminum earns its place when weight, appearance after anodizing, or thermal behaviour is the real requirement, and it earns it comfortably. What it does not do is behave like steel with the mass removed. The bend radius, the weld preparation, the handling discipline and the finishing route all have to be written for aluminum, and when they are, the material is straightforward to run.

Send us the drawing with the finish and the visible faces marked, tell us whether the part will be welded or anodized, and say what it will be fastened to. Those three answers let us quote an aluminum part accurately and, more usefully, tell you in advance whether aluminum is the right answer at all.

Frequently Asked Questions

Why is aluminum quoted differently from steel on the same drawing?

Because the drawing does not describe the same amount of work. Aluminum costs more per kilogram, needs more handling care, may need a different bend setup, and usually needs more finishing attention. Cutting parameters and weld preparation differ as well. The geometry being identical creates an expectation that the effort is identical, and it is not — which is worth knowing before the quote is compared rather than after.

Can aluminum parts be welded to a stainless frame?

Fusion welding aluminum directly to stainless is not a practical production process for sheet metal assemblies. The usual approach is mechanical fastening with isolation between the two metals, so the parts can be separated and the galvanic risk managed. If a design depends on a welded transition, it is worth revisiting before tooling or fixtures are committed.

Does aluminum need a protective film during fabrication?

For visible parts, yes, and it is worth saying so explicitly. The film protects against the marks that ordinary handling leaves on a soft surface, and those marks cannot be removed later if the part is anodized. The decision that needs to be made is when the film comes off, because some processes need it removed and others are safer with it in place.

When should a part stay steel instead of moving to aluminum?

When weight is not the problem being solved. If the reason for the change is corrosion resistance in a washdown area, stainless is usually the better answer. If the reason is cost, aluminum is unlikely to help. If the part is hidden, structural, or welded into a steel frame, staying in steel usually removes more problems than the change removes weight.
